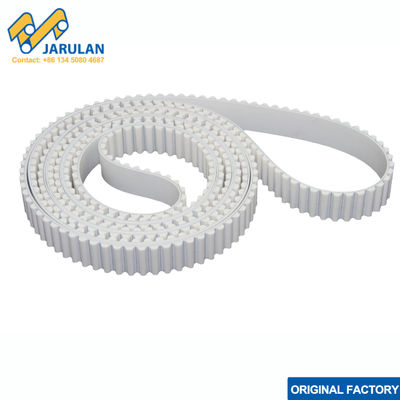

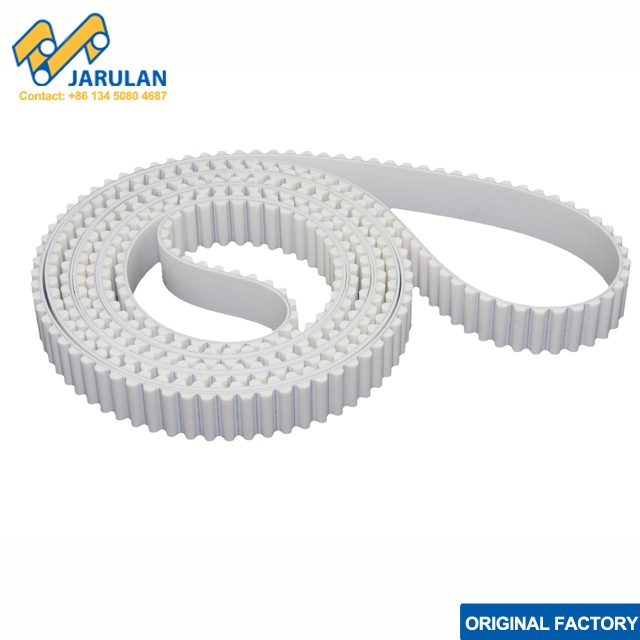

PU Open Ended Timing Belts HTD 14M STD 8M Abrasion Resistant

Steel wire polyurethane cheronous belts whose nominal pitches are 3mm,5mm,8mm and 14mm are equipped with arch shaped teeth. With characteristics of high transmitted torque, transmission accurancy, it is widely used in linear positioning. Among them, steel wire polyurethane cheronous belts with nominal pitch of 3mm ,5mm are used in small power transmission; steel wire polyurethane cheronous belts with nomial pitch of 8mm is used in medium power transmission and steel wire polyurethane cheronous belts with nominal pitch of 14mm is used in large power transimission.

Tolerance:

Tolerance of the width :±0.5(mm)

Tolerance of the length:±0.5(mm)

Tolerance of the thickness:±0.2(mm)

Technical parameters for HTD and STD series:

1. Thermoplastic polyurethane timing belt from the opening material, with high wear resistance. Ensure all types of wire core is still in the high-load transmission good running ability.

2. Production tolerance of small, reliable transmission and has a dimensional stability. The production process or in the teeth and tooth add a layer of nylon to ensure that applications running in the special characteristics of the same. Also thicker layer of polyurethane in the belt or the back of the red plastic to prevent corrosion or high load.

3. Open (PU) belt made by the themoplastic polyurethane material with high wear resistance. Ensure all types of wire core is still in the high-load transmission good running ability.

4. Production tolerance.Drive, reliable and dimensional stability. The production process in the tooth surface or teeth and add a layer of nylon to ensure that applications running in the special characteristics of the same. Also thicker layer of polyurethane on the back of the belt to prevent corrosion or high load.

5. Open (PU) belt has the following properties: Mechanical properties-Dimensional stability-pre-tension low-low noise-highly resistant to wear -no maintenance-elastic good -highly accurate straight-straight line speed of up to 80m/sec and chemical properties aging, water solution, UV UVA, anti-acid and alkali corrosion with other thermoplastic materials combination.

6. Opening opening band finished with a continuous length, the middle and the sides parallel to the wire core. Standard roll length is 50 or 100 meters.

7. Open(PU) leather belt with a variety of different core option, such as kevlar core, highly flexible core(HF) high-perdormance (HP) and high performance and high toughness(HPF).

Jarulan is available with all kinds of PU timing belts:

-Open end

-Truly endless

-Jointed

-Coated with rubber, cloth, PU, APL, foam, rough PVC, cleats, etc.
