Food Grade Double Side PVC Fabric Conveyor Belt 1.8mm For Dough Sheeter

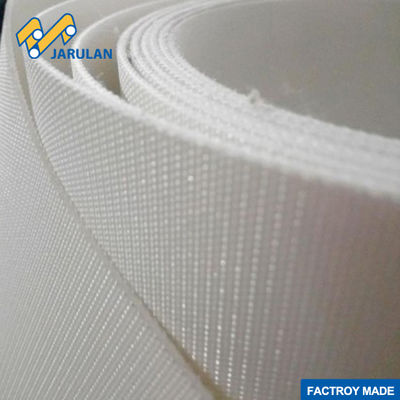

Large Image : Food Grade Double Side PVC Fabric Conveyor Belt 1.8mm For Dough Sheeter

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Packaging Details:	Wrapped with stretched film & Packed in pallets
Delivery Time:	within 15-20 days
Payment Terms:	T/T; LC,etc

Contact Now Chat Now

Food Grade Double Side PVC Fabric Conveyor Belt 1.8mm For Dough Sheeter

Description

Type:	PU Conveyor Belt	Material:	Polyurethane
Pattern:	Glossy Or Matt, Special Patterns Are Vailable	Quality:	FDA/EU Approved
Thickness:	0.5mm-6mm	Temperature Range:	-35℃ To 80℃
Color:	White/blue/black, Etc	Standard Width:	2000mm/3000mm
Application:	Food Conveying
Highlight:	Double Side PVC Fabric Conveyor Belt , 1.8mm Conveyor Belt For Dough Sheeter

Food belt Double-side fabric 1.8mm Conveyor Belt for Dough Sheeter

Description

Product name: double-side fabric PVC conveyor belt

Material: fabric, PVC

Thickness: 1.8mm

Application: food industry, bread factories

Technical Data Sheet

Belt data
Color	white
Tension Member	Polyester Fabric
Fabric layer(s)	2 EM
Total Thickness	1.8 mm	0.071 inch
Weight approx.	2.1 kg/m²	0.430 lb/ft²
Standard width	2000 mm	78.7 inch
Maximum width	3000 mm	118.1 inch
Top side
Material	FABRIC	white
Thickness		mm	inch
Hardness	Shore hardness
Middle side
Material	FABRIC	white
Bottom side
Material	Polyester Fabric
Thickness	0 mm		inch
Hardness	Shore hardness
Belt characteristics
Force at 1% elongation	8 N/mm	44.8 lbs/ins
Laterally	stable
Noise level	(not applicable if blank)
Ambient temperature	-10 °C	14 °F
	80 °C	176 °F
Max. temperature short	-15 °C	5 °F
	100 °C	212 °F

Oil resistance and food grade are available. Jarulan is able to produce the PVC Conveyor belt according to your standard.

Jarulan PU and PVC conveyor belts have been approved by certification of EC 1935/2004, EC 2023/2006, EU 10/2011 and FDA food grade. We are experienced in producing different quality levels of products. Not like other companies are just provided products with prices, we are good at offering conveyor belt solutions, development and customization.
