Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant

Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant
Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant

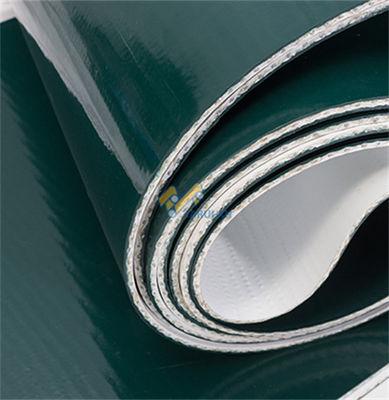

Large Image :  Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant

Product Details:
Place of Origin: China
Model Number: 882007
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Packaging Details: Wrapped with stretched film & Packed in pallets
Delivery Time: within 15-20 days
Payment Terms: T/T; LC,etc
Contact Now Chat Now

Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant

Description
Working Temperature: -10/+80℃ Advantage: Oil Resistant And Cut Resistant
Character: Wear-resisting Weight: 3.9 KG/㎡
Belt Type: PU Conveyor Belt Usage: Steel Plate Processing Industry
Abrasion Resistance: High Color: Dark Green
Hardness: 92 Shore A Thickness: 3.2mm-3.5mm
Ply: 3
Highlight:

Dark Green PU Conveyor Belt

,

Oil Resistant PU Conveyor Belt

,

Dark Green Seamless Wrapping Steel Belt

Technical Parameters
Product model: JRL0775H
Fabric structure: seamless polyester woven fabric
Belt thickness: 5mm to 10mm
Belt surface: TPU hardness 85 Shore A/91 Shore A
Middle layer of belt: polyester wire weave
Belt bottom layer: oil-resistant PU coating
Surface friction: iron 0.830 and aluminum 0.672
Peel strength: between fabric layer and TPU>8N/mm
Stretching rebound: GKJ550
  • Force at 1% elongation: 18N/mm, recovery rate 99.9% (4min)
  • Force at 2% elongation: 45N/mm, recovery rate 99.9% (7min)
  • Force at 3% elongation: 70N/mm, recovery rate 99% (9min)
  • Force at 5% elongation: 137N/mm, recovery rate 70~75%
Maximum width: 2000mm
Belt performance:
  • The material of the tape being assisted: CQ, DQ, DDQ, 50W470-50W800
  • The thickness of the assisted strip: 0.05-10mm
  • The performance of the assisted strip: σ s≤360N/mm2 σ b≤500N/mm
Ambient temperature: -10°C---+100°C (contact temperature)
Running speed: 400 m/min
Minimum pulley diameter: 500mm
Scope of application:

cold-rolled steel pickling crew, cold sheet mill, temper mill, galvanizing line, Aluminum industry, etc.

Recommended Options
Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant 0
Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant 1
Application indication

Automobile Sheeted metal Steel General handling

Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant 2

In addition, JARULAN can also provide coiling machine belts used in the steel plate industry.

We are available for all kinds of industrial belts. Please feel free to contact us for more details.

Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant 3

Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant 4



Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant 5Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant 6
