Antistatic Conveyor Belt Profile PVC Or PU Material K6 K8 K10 K13 K17 K22 K30

Large Image : Antistatic Conveyor Belt Profile PVC Or PU Material K6 K8 K10 K13 K17 K22 K30

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter or 1 pcs
Packaging Details:	Wrapped with stretched film & Packed in pallets
Delivery Time:	within 15-20 days
Payment Terms:	T/T; LC,etc

Contact Now Chat Now

Antistatic Conveyor Belt Profile PVC Or PU Material K6 K8 K10 K13 K17 K22 K30

Description

Material:

PVC Or PU

Color:

White/green/blue/black

Hardness:

60/65 Shore A

Function:

Positioning And Guiding

Highlight:

Antistatic Conveyor Belt Profile

Conveyor Belt Profile PU Material

Antistatic Conveyor Belt Profile K6/K8/K10/K13/K17/K22/K30

CONVEYOR BELT PROCESSING ACCESSORIES

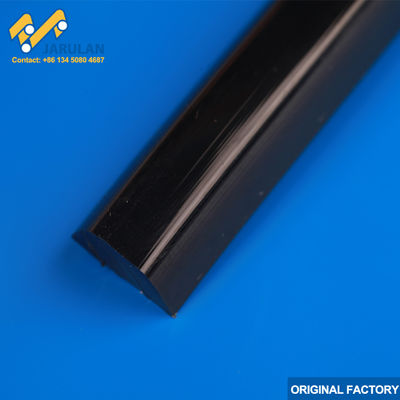

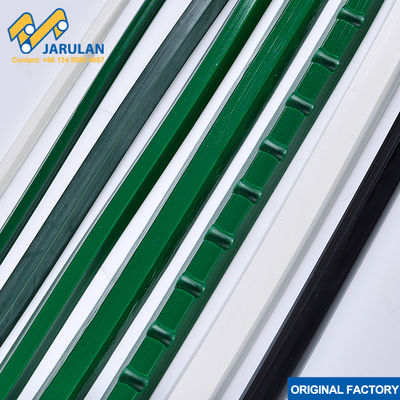

The conveyer belt guide/ conveyor belt profile is a PVC or PU material profile with positioning and guiding functions. Its main purpose is to ensure that the conveyor belt runs accurately when it is running on the conveyor, and it can also be used as a material positioning on the bearing surface of the conveyor belt.

There are two main functions of the conveyor belt guide:

to prevent the conveyor belt from running off;
to use it as a positioning on the bearing surface.

BASIC PARAMETERS OF CONVEYOR BELT GUIDES

CODE	Sizes B* H (mm)	Height (mm)	Bottom Width (mm)	Color	Material	Hardness (shore A)	Min. Pulley Diameter (mm)
CODE	Sizes B* H (mm)	Height (mm)	Bottom Width (mm)	Color	Material	Hardness (shore A)	Front Side	Back Side
K6	6*4	4	6	white/green/blue/black	PVC/PU	60/65	40	30
K8	8*5	5	8	white/green/blue/black	PVC/PU	60/65	50	40
K10	10*6	6	10	white/green/blue/black	PVC/PU	60/65	70	60
K13	13*8	8	13	white/green/blue/black	PVC/PU	60/65	100	80
K17	17*11	11	17	white/green/blue/black	PVC	60/65	110	90
K22	22*14	14	22	white/green/blue/black	PVC	60/65	180	130
K30	30*17	17	30	white/green/blue/black	PVC	60/65	200	150
R5	5*5	5	5	white/green/blue/black	PVC	60/65	50	40
S10	10*10	10	10	white/green/blue/black	PVC	60/65	150	70
S15	15*15	15	15	white/green/blue/black	PVC	60/65	200	90
S20	20*20	20	20	white/green/blue/black	PVC	60/65	250	130
Remarks	Other specifications can produce according to clients.

CROSS SECTION OF PVC/PU CONVEYOR BELT GUIDES

Jarulan is able to customize special conveyor belts according to our customers’ special application environment.

--Surface and bottom processing: cleats, sidewall, guide and turning belts welding on the surface of conveyor belts are available. Sponge, red rubber and green rubber added on the surface can be provided as well.

--Punching holes: we can punch holes like round hole, square hole, long shape hole and any other special shapes of hole on the belt.

DIMENSIONS OF CONVEYOR BELT GUIDES

Guide Type	Guide dimensions (mm)	Length per roll (m)
K6	6*4	300
K8	8*5	300
K10	10*6	300
K13	13*8	200
K17	17*11	100
