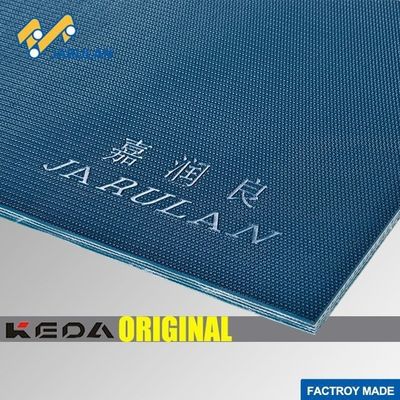

Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine

I'm Online Chat Now

Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine

Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine
Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine

Large Image :  Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine

Product Details:
Place of Origin: China
Brand Name: JARULAN
Certification: KEDA supplier certificates
Model Number: HPVC9SS4FPB
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Packaging Details: Wrapped with stretched film & Packed in pallets
Delivery Time: within 15-20 days
Payment Terms: T/T; LC,etc
Contact Now Chat Now

Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine

Description
Working Temperature: -10/+80℃ Character: Wear-resisting
Weight: 11 KG/㎡ For 9mm Belt Type: PVC Conveyor Belt
Advantage: Abrasion Resistant Item: Conveyor Belt
Usage: Ceramics And Stone Processing Industry Color: Petrol Green
Thickness: 7mm Or 9mm Ply: 3ply For 7mm; 4ply For 9mm
Pattern: Snake Skin/diamond
Highlight:

diamond surface pvc conveyor belt

,

diamond surface green conveyor belt

JARULAN CERAMICS POLISHING BELT DESCRIPTION

JARULAN specially designs the diamond (snake-skin) surface for polishing conveyor belt, which is best for increasing the absorptive property of polished goods and excretion performance of waste water. The fabric layer has got patent approved, which is specially good at wear resistance, pressing resistance and durability. KEDA, which is one of the famous machine brands in international ceramics industry, has chosen JARULAN polishing conveyor belts as their original machine belts for years. JARULAN can customize a variety of width, length, thickness, hardness of the open ended or closed ended polishing conveyor belt. Jarulan's polishing conveyor belts have gain good reputation for best performaces around the world.

Product Name

PVC Conveyor Belt for ceramic/marble polishing

No.

HPVC9SSF4PG/ HPVC7SSF4PG

Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine 0
CERAMICS POLISHING BELT TECHNICAL DATA SHEET

Top cover

PVC

fabric

EM

Tension/ number of plies

60/4 (9.0); 45/3 (7.0);

Bottom thickness / profile

00

Top cover thickness / profile

H8

Color

petrol blue

Standard width (mm)

380/900/950/1000/1200/1500/2000/2200/2600/3000

Max. available width (mm)

3500

Belt thickness mm

9.0/7.0

Weight kg/m2

10.9 (9.0)/ 8.9 (7.0)

F/E at 1%

60 N/mm (9.0); 45N/mm (7.0)

Number of plies

4(9.0)/3(7.0)

Material

PVC

Top hardness shore

75A

Top cover thickness(mm)

2.2

Laterally

stable

Flexing mm (20ºC)

250

Back flexing mm (20ºC)

350

Prolonged minimum °C

-15

Prolonged maximum °C

80

Short minimum °C

-15

Short maximum °C

100

Application

polishing machines for Ceramics, marble, tiles, stones

Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine 1 Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine 2 Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine 3
ADVANTAGES OF JARULAN CERAMICS POLISHING BELT
  • Diamond pattern (snake-skin) surface design, which can effectively promote the ability of wast water excretion.
  • Patented fabric layer design, making JARULAN's polishing conveyor belt is better than others in the durability and wear resistance.
  • Imported production equipments, confirming JARULAN's conveyor belts with uniform thickness, moderate hardness.
  • Suppliers of big famous machine brands like KEDA, trustworthy.
  • Experienced jointing workers; dealers are throughout the China and even the world, to provide timely on-site service.
RECOMMENDATION OF CERAMICS POLISHING BELT TYPES
ITEM Thickness (MM) Material Surface Bottom Color Plies Top hardess shore 1% Extension stress Weight Min. roller diameter Prodiction width
PVC7SSF3PB-50 7.00 PVC snake skin fabric petrol bule 3 45-50 45 8.9 120 1300/1000/950/900/850
PVC7SSF3PB 7.00 PVC smooth fabric petrol bule 3 75 45 8.9 120 1300/1000/950/900/850
PVC9SSF4PB 9.00 PVC snake skin fabric petrol bule 4 75 60 10.9 350 1300/1000/950/900/850
PVC9/5SF4BE 9.50 PVC snake skin fabric Blue color 4 75 60 11.5 350 1300/1000/950/900/850

**We can manufacture max. width of 3500mm. Other width dimensions of PVC polishing conveyor belts are avaialble.

JURULAN is acting as the original belt supplier to KEDA machine since 2015.

Diamond Surface 7mm Or 9mm PVC Conveyor Belt For Ceramics Polishing Machine 4

1. Diamond pattern (snake-skin) surface design, can effectively promote the ability of wast water excretion.

2. Patented fabric layer design, making JARULAN's polishing conveyor belt is better than others in the durability and wear resistance.

3. Imported production equipments, confirming JARULAN's conveyor belts with uniform thickness, moderate hardness.

4. Suppliers of big famous machine brands like KEDA, trustworthy.

5. Experienced jointing workers; dealers are throughout the China and even the world, to provide timely on-site service.

If our high quality diamond surface 7mm or 9mm pvc polishing conveyor belt for ceramics polishing machine caters to your requirement, welcome to buy the low price and quality belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.

If our high quality diamond surface 7mm or 9mm pvc polishing conveyor belt for ceramics polishing machine caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
