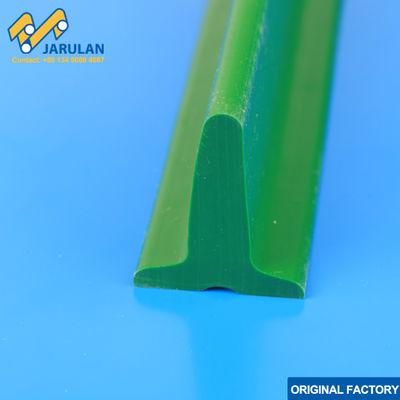

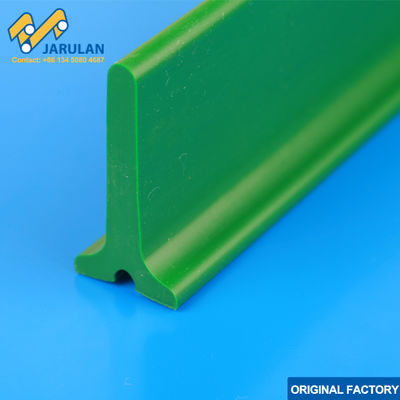

Green Color Straight PVC Flights With Different Height T30 T40 T70 T80 T90 T100

Inclined conveyors occasionally require belts with profiles or cleats (flights) on the carrying surface.

These prevent slippage of the conveyed material and increases the belt capacity.

The type and height of the most suitable cleat (flight) is determined according to the characteristics of the conyeved material and the inclination of the conveyor. Optimum conveying capacity can be achieved up to angles of 70º by this means.

Cross Section of cleat types	MATERIAL	TYPE	Color	Temperature (℃)	Min. Turning Diameter (mm)
	PVC	T10	white/green/blue/black white/green/blue/black	-10/+70	40
	PVC	T20		-10/+70	90
	PVC	T30		-10/+70	120
	PVC	T40		-10/+70	120
	PVC	T50		-10/+70	120
	PVC	T60		-10/+70	150
	PVC	T70		-10/+70	160
	PVC	T80		-10/+70	180
	PVC	W35		-10/+70	130
	PVC	X50		-10/+70	150
	PVC	X60		-10/+70	150
	PVC	X70		-10/+70	180
	PU	T20		-20/+80	60
	PU	T30		-20/+80	60
	PU	T40		-20/+80	60
	PU	T60		-20/+80	80
	PU	Z120		-20/+80	300
	PU	Z120		-20/+80	300
	PU	Z120		-20/+80	300

Other specifications can produce according to clients.
