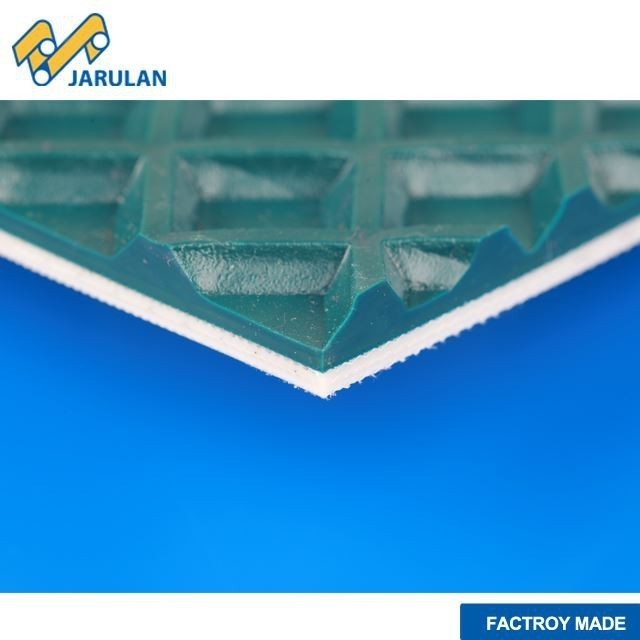

Wear Resistant Checker Pattern PVC Conveyor Belt For Wood Sanding Line

Texture: PVC Bottom: Fabric

Color: Black/Green

Characteristics: Wearable/anti-static

Conveyor Belts for the Woodworking Industry

To meet the requirements of the woodworking industry, we offer suitable PVC and PU conveyor belts for use with MDF, particleboard, and composite board production lines, as well as various woodworking machinery (such as light and heavy-duty sanders).

Meeting the requirements of imported wood-based panel production lines, we provide high-strength paving machine belts, pre-pressing belts, metering belts, and trolley belts, all compatible with genuine imported machinery.

Belt Code: FLEXIBLE PVC EM 15/3 0+H19 Green

Belt data

Fabric layer(s)

3 EM H19

Topside

Flexible PVC Green

5.5 mm

0.217 inch

60A

Shore hardness

Bottomside

0

Thickness approx.

9 mm 0.354 inch

Weight approx.

8.2 kg/m² 1.679 lb/ft²

Standard width

1300 mm 51.2 inch

Maximum width

3000 mm 118.1 inch

Belt characteristics

Force at 1% elongation

15 N/mm 84.0 lbs/ins

Laterally stable



Noise level

(not applicable if blank)

Ambient temperature

-10 °C 14 °F 80 176

Max. temperature short

-15 °C 5 °F 100 212
