PVC Top Diamond Bottom Smooth Conveyor PVC Belt Green Color Double Side

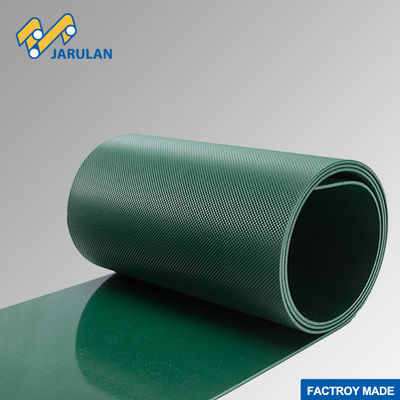

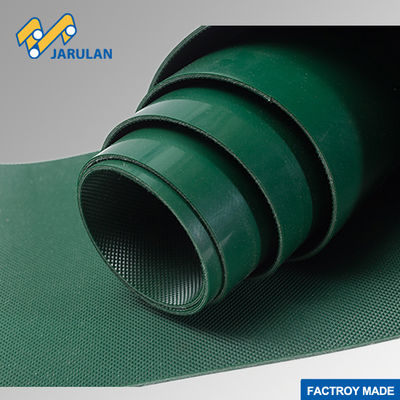

Large Image : PVC Top Diamond Bottom Smooth Conveyor PVC Belt Green Color Double Side

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Packaging Details:	Wrapped with stretched film & Packed in pallets
Delivery Time:	within 15-20 days
Payment Terms:	T/T; LC,etc

Contact Now Chat Now

PVC Top Diamond Bottom Smooth Conveyor PVC Belt Green Color Double Side

Description

Working Temperature:	-10/+80℃	Character:	Wear-resisting
Belt Type:	PVC Conveyor Belt	Bottom Material:	PVC
Free Samples:	Available	Max Width:	3500mm
Dimension:	As Required	Available Length:	Customizable
Quality:	High Quality	Thickness:	3mm/4mm/5mm Etc
Color:	Green/white/black, Etc
Highlight:	Double Side PVC Top Conveyor Belt , Diamond Bottom Conveyor PVC Belt , Green Color Conveyor Pvc Belting

Double-side PVC Top Diamond Bottom Smooth PVC Conveyor Belts Green Color

Description

The surface is diamond and the bottom is smooth,

The thickness is available for 3mm, 4mm and 5mm, etc.

The color is green. Other colors like white, blue, black are workable to produce according to your need.

If your demand is large, it can also be customized according to your special requirement.

Technical Data Sheet

Belt data
Color	green
Tension Member	Polyester Fabric
Fabric layer(s)	2	EM
Total Thickness	3	mm	0.118	inch
Weight approx.	3.6	kg/m²	0.737	lb/ft²
Standard width	2000	mm	78.7	inch
Maximum width	3000	mm	118.1	inch

Top side	PVC	05	green
Thickness	0.5	mm	0.020	inch
Hardness	80A	Shore hardness
Middle side	PVC		green

Bottom side	Polyester Fabric
Thickness	H18	mm		inch
Hardness		Shore hardness

Belt characteristics
Force at 1% elongation	10	N/mm	56.0	lbs/ins
Laterally	stable
Noise level		(not applicable if blank)
Ambient temperature	-10	°C	14	°F
	80		176
Max. temperature short	-15	°C	5	°F
	100		212

If our green diamond pvc conveyor belts caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
