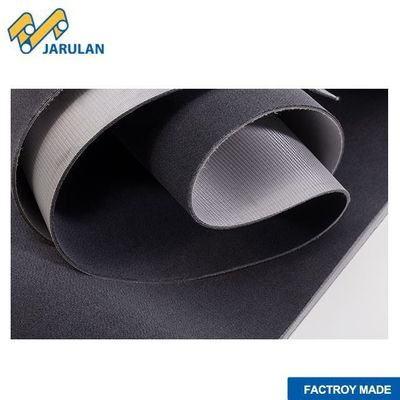

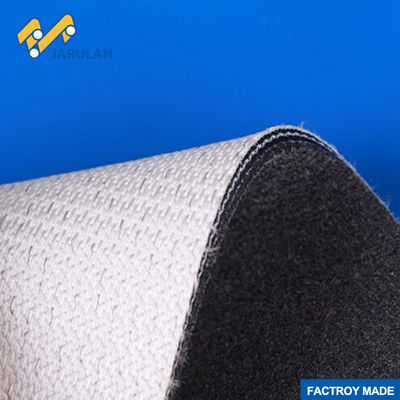

Grey High Strength Felt Conveyor Belt 2 Ply For Electrical Appliance Industry

I'm Online Chat Now

Grey High Strength Felt Conveyor Belt 2 Ply For Electrical Appliance Industry

Grey High Strength Felt Conveyor Belt 2 Ply For Electrical Appliance Industry
Grey High Strength Felt Conveyor Belt 2 Ply For Electrical Appliance Industry Grey High Strength Felt Conveyor Belt 2 Ply For Electrical Appliance Industry

Large Image :  Grey High Strength Felt Conveyor Belt 2 Ply For Electrical Appliance Industry

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Packaging Details: Wrapped with stretched film & Packed in pallets
Delivery Time: within 15-20 days
Payment Terms: T/T; LC,etc
Contact Now Chat Now

Grey High Strength Felt Conveyor Belt 2 Ply For Electrical Appliance Industry

Description
Abrasion Resistance: High Working Temperature: -10/+80℃
Character: Wear-resisting Weight: 1.8 KG/㎡
Belt Type: Conveyor Belt Advantage: Directly
Item: Conveyor Belt Usage: Food Processing Industry
Advantages: Non-toxic,Eco-friendly
Highlight:

Felt Conveyor Belt 2 Ply

,

High Strength Felt Conveyor Belt

Description
I. Key Features and Advantages
  • Excellent Product Protection: The dense felt surface is soft and elastic, effectively preventing scratches, scrapes, and indentations on electrical housings, glass panels, and painted surfaces during conveying.
  • High Friction and Slip Resistance: The felt surface provides high friction, ensuring reliable conveyance of smooth metal housings, plastic parts, or glass, preventing products from slipping or shifting on the conveyor line and ensuring assembly accuracy.
  • Excellent Shock Absorption and Cushioning: At assembly stations, the felt belt absorbs the impact of the robot placing parts, protecting the product.
  • Dirty and Aesthetically Resistant: Gray is a stain-resistant color in industrial environments, maintaining a clean appearance of the production line.
  • Suitable Temperature Resistance: The polyester material offers excellent heat resistance, making it suitable for environments with a certain temperature (typically -30°C to +130°C, with a temporary temperature range of up to 150°C) such as post-spray drying ovens and cooling sections.
  • High strength and long life: The internal high-strength cable layer ensures the tensile strength and stability of the conveyor belt under long-term high load, and is not easy to stretch and deform.
Product name:
Low Noise for e-appliances industry Felt conveyor belt
No.:
SB0001
Thickness:
2.5/4.0mm
Material:
felt, fabric
Application:
small home appliances production lines
Advantages:
Non-electrical conductive, low noise
TECHNICAL DATA SHEET
FELT BELT
Belt data
Fabric layer(s)
2 EX
Topside
Felt Black
Thickness approx.
3.3 mm 0.130 inch
Belt characteristics
Force at 1% elongation
10 N/mm 56.0 lbs/ins
Laterally stable

Noise level LN


Technical Data Sheet for Some Basic Types of Smooth PVC Conveyor Belts
Code Thick Material Surface Bottom Color Plies
PVC1SF1W 1 PVC smooth fabric white 1
PVC1SF1BK 1 PVC smooth fabric black 1
PVC1SF1G 1 PVC smooth fabric green 1
PVC1SF1DG 1 PVC smooth fabric deep green 1
PVC2SF2W 2 PVC smooth fabric white 2
PVC2SF2BK 2 PVC smooth fabric black 2
PVC2SF2DG 2 PVC smooth fabric deep green 2
PVC2SF2G 2 PVC smooth fabric green 2
PVC2SF2BE 2 PVC smooth fabric blue 2
PVC2SF2BE-FDA 2 PVC smooth fabric blue 2
PVC2/8SF2G AS 2.8 PVC smooth fabric green 2
PVC3SF2DG 3 PVC smooth fabric deep green 2
PVC3SF2G 3 PVC smooth fabric green 2
PVC3SF2BE 3 PVC smooth fabric blue 2
PVC3SS2-1W 3 PVC smooth smooth white 2 PVC+1 fabric
PVC3SS2-1G 3 PVC smooth smooth green 2 PVC+1 fabric
PVC4SF3W 4 PVC smooth fabric white 3
PVC4SF3BK 4 PVC smooth fabric black 3
PVC4SF3G 4 PVC smooth fabric green 3
PVC5SF3G 5 PVC smooth fabric green 3
PVC5SF3BK 5 PVC smooth fabric black 3
PVC5SF3W 5 PVC smooth fabric white 3
PVC6SF4G 6 PVC smooth fabric green 4
PVC6SF4BK 6 PVC smooth fabric black 4
PVC6SF4W 6 PVC smooth fabric white 4
PVC7SF3PG 7 PVC smooth fabric petrol green 3



Code 1% Extension stress (kg/MM) Weight (kg/㎡) Min. roller diameter (mm) Temperature range (℃) Standard Production width (mm) Special properties
PVC1SF1W 4 1.2 15 -10~+80 2000/3000
PVC1SF1BK 4 1.2 15 -10~+80 2000/3000
PVC1SF1G 4 1.2 15 -10~+80 2000/3000
PVC1SF1DG 4 1.2 15 -10~+80 2000/3000
PVC2SF2W 8 2.3 30 -10~+80 2000/3000
PVC2SF2BK 10 2.3 30 -10~+80 2000/3000
PVC2SF2DG 10 2.3 30 -10~+80 2000/3000
PVC2SF2G 8 2.3 30 -10~+80 2000/3000
PVC2SF2BE 10 2.3 30 -10~+80 2000/3000
PVC2SF2BE-FDA 10 2.3 30 -10~+80 2000/3000 FDA
PVC2/8SF2G AS 8 3.3 40 -10~+80 2000/3000
PVC3SF2DG 10 3.5 40 -10~+80 2000/3000
PVC3SF2G 8 3.5 50 -10~+80 2000/3000
PVC3SF2BE 8 3.5 50 -10~+80 2000/3000
PVC3SS2-1W 8 3.1 50 -15~+80 2000/3000
PVC3SS2-1G 8 3.1 50 -10~+80 2000/3000
PVC4SF3W 13 4.8 150 -10~+80 2000/3000
PVC4SF3BK 13 4.8 150 -10~+80 2000/3000
PVC4SF3G 13 4.8 150 -10~+80 2000/3000
PVC5SF3G 13 5.4 100 -10~+80 2000/3000
PVC5SF3BK 13 5.4 100 -10~+80 2000/3000
PVC5SF3W 13 5.4 100 -10~+80 2000/3000
PVC6SF4G 16 6.5 150 -10~+80 2000/3000
PVC6SF4BK 16 6.5 150 -10~+80 2000/3000
PVC6SF4W 16 6.5 150 -10~+80 2000/3000
PVC7SF3PG 30 7.6 300 -10~+90 2000/3000




Product Details:

We could offer light-weight conveyor belts with cheap price and best quality with more than 15-year conveyor belt' production experiences. Please contact us for good price PVC conveyor belts.
