Pattern: | Longitudinal | Working Temperature: | -10/+80℃ |
---|---|---|---|
Character: | Soft Hardness | Weight: | 2.7 KG/㎡ |
Belt Type: | PVC Conveyor Belt | Application: | Airport, Logistics Industry |
Color: | Green | ||
Highlight: | Green Color PVC Conveyor Belting,Longitudianal Top PVC Conveyor Belting |

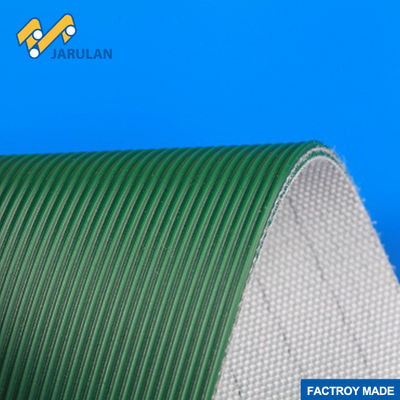

These belts are used in airport, postal and logistic installations, where low-noise, flame retardant and antistatic properties are requested for safety reasons. Jarulan's green color longitudinal pattern PVC conveyor belt is able to produced with low-noise fabric and flame retardant according to customers' requirement.
Considering the economical factors, most customers that using this belt in logistics industry will use only normal polyester fabric type, which is much cheaper than the black flame retardant type.
Another type: Black Color Flame Retardant Longitudinal PVC Conveyor Belt with Low-Noise Fabric for your reference:
Belt data | ||||
Fabric layer(s) | 2 | EM | H32 | |
Topside | Flexible PVC | Green | ||
1.4 | mm | 0.055 | inch | |
65A | Shore hardness | |||
Bottomside | 0 | |||
Thickness approx. | 3.2 | mm | 0.126 | inch |
Weight approx. | 3.5 | kg/m² | 0.717 | lb/ft² |
Standard width | 2000 | mm | 78.7 | inch |
Maximum width | 3000 | mm | 118.1 | inch |
Belt characteristics | ||||
Force at 1% elongation | 10 | N/mm | 56.0 | lbs/ins |
Laterally | stable | |||
Noise level | (not applicable if blank) | |||
Ambient temperature | -25 | °C | -13 | °F |
80 | 176 | |||
Max. temperature short | -25 | °C | -13 | °F |
100 | 212 |
If our Flame Retardant Longitudianal Top Black PVC Conveyor Belt with Low Noise Fabric caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
