Flame Retardant Longitudianal Top PVC Conveyor Belt Black Color With Low Noise Fabric

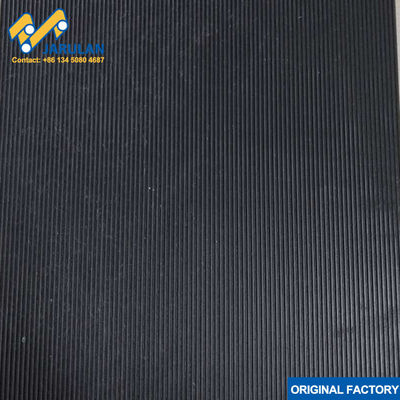

Large Image : Flame Retardant Longitudianal Top PVC Conveyor Belt Black Color With Low Noise Fabric

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Packaging Details:	Wrapped with stretched film & Packed in pallets
Delivery Time:	within 15-20 days
Payment Terms:	T/T; LC,etc

Contact Now Chat Now

Flame Retardant Longitudianal Top PVC Conveyor Belt Black Color With Low Noise Fabric

Description

Working Temperature:	-10/+80℃	Character:	Low Noise; Flame Retardant
Weight:	2.7 KG/㎡	Belt Type:	PVC Conveyor Belt
Advantage:	Low Noise, Anti-fire	Application:	Airport, Logistics Industry
Pattern:	Longitudinal	Color:	Black
Highlight:	Flame Retardant PVC Conveyor Belt , Longitudianal Top PVC Conveyor Belt

Flame Retardant Longitudianal Top Black PVC Conveyor Belt with Low Noise Fabric

Description

These belts are used in airport, postal and logistic installations, where low-noise, flame retardant and antistatic properties are requested for safety reasons.

The belt is produced with low-noise fabric on the bottom which greatly increased it performance for the quiet requirement of airport application.

Technical Data Sheet

Belt data
Fabric layer(s)	2	EX	A32
Topside	Flexible	PVC	black
1	mm	0.039	inch
35A	Shore hardness
Bottomside	0
Thickness approx.	2.6	mm	0.106	inch
Weight approx.	2.7	kg/m²	0.451	lb/ft²
Standard width	2000	mm	78.7	inch
Maximum width	3000	mm	118.1	inch
Belt characteristics
Force at 1% elongation	10	N/mm	56.0	lbs/ins
Laterally	stable
Noise level	LN	(not applicable if blank)
Ambient temperature	-25	°C	-13	°F
80	176
Max. temperature short	-25	°C	-13	°F
100	212

If our Flame Retardant Longitudianal Top Black PVC Conveyor Belt with Low Noise Fabric caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
