PVC Material Fishbone Conveyor Belt Oil Resistant White Colour FDA Approved

Large Image : PVC Material Fishbone Conveyor Belt Oil Resistant White Colour FDA Approved

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Packaging Details:	Wrapped with stretched film & Packed in pallets
Delivery Time:	within 15-20 days
Payment Terms:	T/T; LC,etc

Contact Now Chat Now

PVC Material Fishbone Conveyor Belt Oil Resistant White Colour FDA Approved

Description

Working Temperature:	-10/+80℃	Character:	Wear-resisting
Belt Type:	PVC Conveyor Belt	Advantage:	Food Grade
Item:	PVC Conveyor Belt	Usage:	Food Processing Industry
Advantages:	Non-toxic,Eco-friendly	Thickness:	5mm Or 5.5mm
Color:	White
Highlight:	PVC Material Fishbone Conveyor Belt , Fishbone Conveyor Belt Oil Resistant

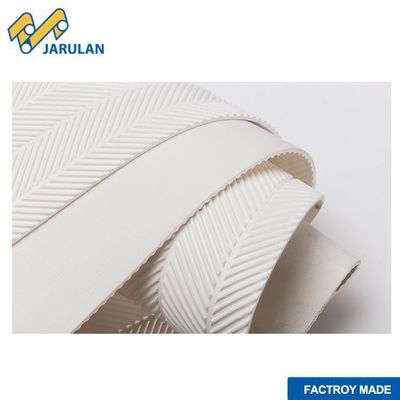

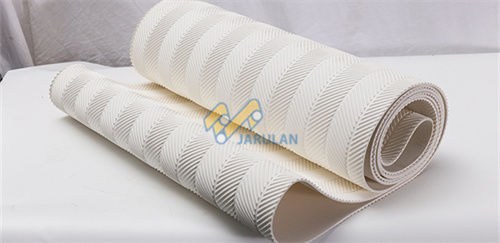

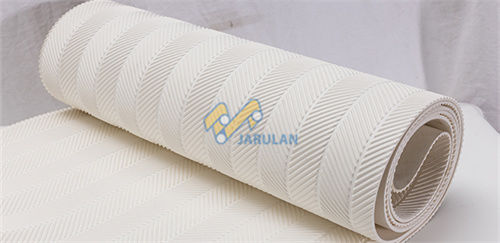

PVC Material Fishbone Conveyor Belt Oil Resistant White Colour FDA Food Grade

Description

Colour	White
Material	PVC
Surface	Herring Bone
Bottom	Fabric

Technical Data Sheet

FLEXIBLE EM 8/2 0+H27 WHITE AS 5.0 HERRINGBONE

Belt data

Fabric layer(s) 2 EM

Topside Flexible PVC White

2 mm 0.079 inch

65 Shore hardness

Bottomside 0

Thickness approx. 5 mm 0.197 inch

Weight approx. 4 kg/m² 0.819 lb/ft²

Standard width 2000 mm 78.7 inch

Maximum width 3200 mm 126.0 inch

Belt characteristics

Force at 1% elongation 8 N/mm 44.8 lbs/ins

Laterally stable

Noise level (not applicable if blank)

Ambient temperature

-15 °C 5 °F

80 176

Max. temperature short

-15 °C 5 °F

100 212

Food Certificate

PVC Material Fishbone Conveyor Belt Oil Resistant White Colour FDA Approved 1
