Low Hardness Non Slip Flexible Conveyor Belt With H Saw Tooth Profile

Low Hardness Non Slip Flexible Conveyor Belt with H Saw-Tooth Profile



There are different type of saw-toothed pattern.

-one-way saw-toothed (standard/narrow pattern)

-Two-way saw-toothed(reverse)

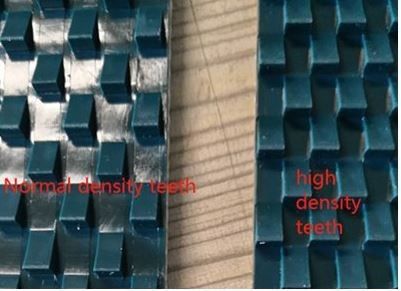

Our high density H series saw-toothed PVC conveyor belt is produced with low hardness, which is just 45 shore A to 55 shore A. The softer teeth could help to avoid the damage of products surface during conveying.

It is specific for marble and ceramic polishing machines whenever a high coefficient of friction is required.

Also, it is widely used in transportation of agriculture products like rice bags where high friction and soft contact surface is needed.

Please find below technical data sheet of our H series saw-toothe pvc conveyor belt:

Total thickness: 9.0mm/8.64mm

Force at 1% elongation: 12N/mm

Top side	Fabric	Bottom side
material: PVC	ply: 2	material: antisatic fabric
color: petrol blue (PG)	weft: rigid (flexible is available)	color: bare
thickness: 6.6mm

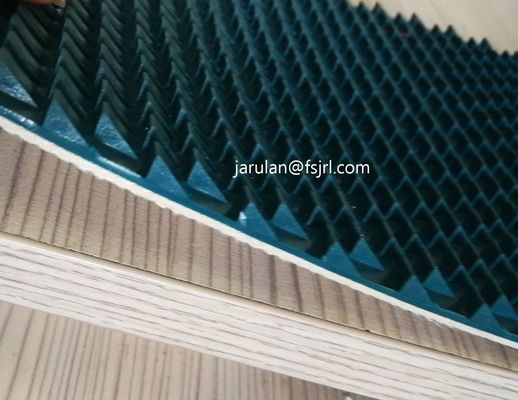

surface: one-way stagerred saw tooth (H)





If our low hardness non slip flexible conveyor belt with h saw-tooth profile caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
