Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator

I'm Online Chat Now

Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator

Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator
Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator

Large Image :  Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Packaging Details: Wrapped with stretched film & Packed in pallets
Delivery Time: within 15-20 days
Payment Terms: T/T; LC,etc
Contact Now Chat Now

Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator

Description
Working Temperature: -10/+80℃ Character: Wear-resisting
Weight: 1.8 KG/㎡ Belt Type: Conveyor Belt
Advantage: Directly Item: Conveyor Belt
Usage: Food Processing Industry Advantages: Non-toxic,Eco-friendly
Abrasion Resistance: High
Highlight:

9.6mm Thickness Sugar Belt

,

High Tensile Strength Sugar Belting

Description

Jarulan is able to provide simple type sugar belt and high standard quality sugar belt. Please consulte us for more details. We could offer professional suggestions according to your application needs.

In the previous sugar belt transporation application, white rubber conveyor belt acted an very important role. But after PVC material sugar belt is introduced to this application area as a replacement of white rubber conveyor belt, PVC sugar belt plays a more and more significant role in sugar factories.

PVC material has the strength that it permits more specific and efficient formulations than rubber, and not like rubber, it is odorless and no fragments with friction during application, perfectly matching the special requirements of the industry.

The characteristics of our high standard PVC sugar conveyor belt:

  • Food grade (FDA & EU approved)
  • Oil resistant
  • Flame retardant (in accordance with ISO 340:2013)(raw material is imported from Ameria)
  • ATEX (according Category 2 - KEMA 05ATEX2164 U)
  • Antistatic (in accordance with ISO 21178)

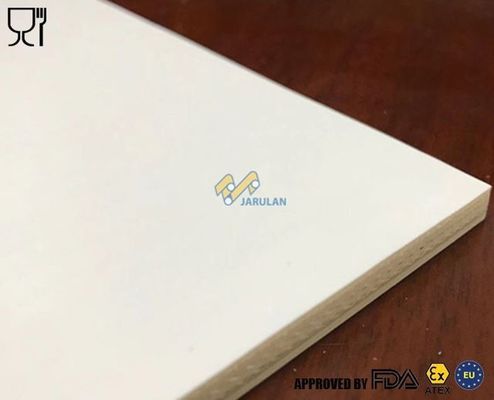

Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator 0

Please find our 9.6mm thickness PVC sugar belt technical data as below:

Product name: PVC sugar belt (trough)

Product code: Flexible EF 60/3 10+30 white AS FR CR FG ATEX

Fabric layer polyester fabric flexible type 3 plies
top cover flexible PVC 3.0mm thick. smooth white
bottom cover flexible PVC 1.0mm thick. smooth white
Thickness 9.6mm
Force at 1% elongation 60N/mm
Hardness 75 A shore
Weight 11.9kg/sqm
Application sugar bucket elevator/storage silo discharge of dry sugar/centrifugal discharge of humid sugar, etc.

Jarulan deeply knows how sugar factories work and how important the food safety is, so we use high standard raw materials to make sure all the coming-out products are perfect.

We are also producing 5.0mm/6.0mm/7.4mm/9.6mm etc. thickness PVC sugar conveyor belt. Please contact us for more detials.

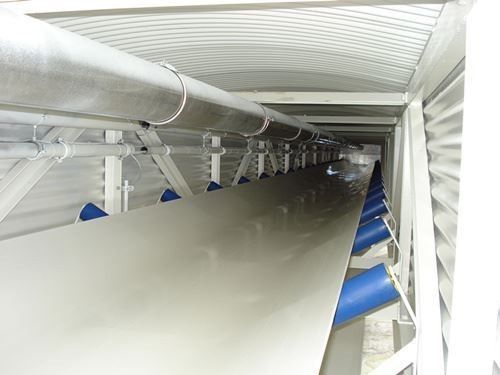

Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator 1

If our high tensile strength 9.6mm thickness sugar belt for bucket elevator caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.

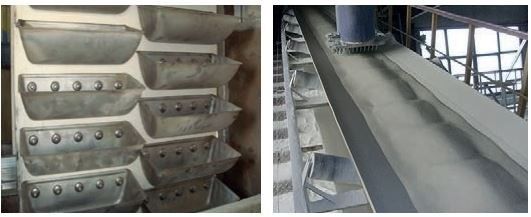

Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator 2

Trough Applicable Flame Retardant Sugar Belting 9.6mm Thickness For Bucket Elevator 3
