Working Temperature: | -10/+80℃ | Character: | Wear-resisting |
---|---|---|---|
Weight: | 1.8 KG/㎡ | Belt Type: | Conveyor Belt |
Advantage: | Directly | Item: | Conveyor Belt |
Usage: | Food Processing Industry | Advantages: | Non-toxic,Eco-friendly |
Abrasion Resistance: | High | ||
Highlight: | Food Grade PVC Conveyor Belt,Food Industry PVC Conveyor Belt |

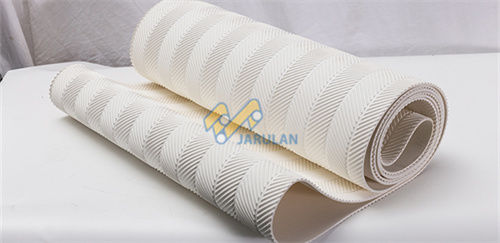

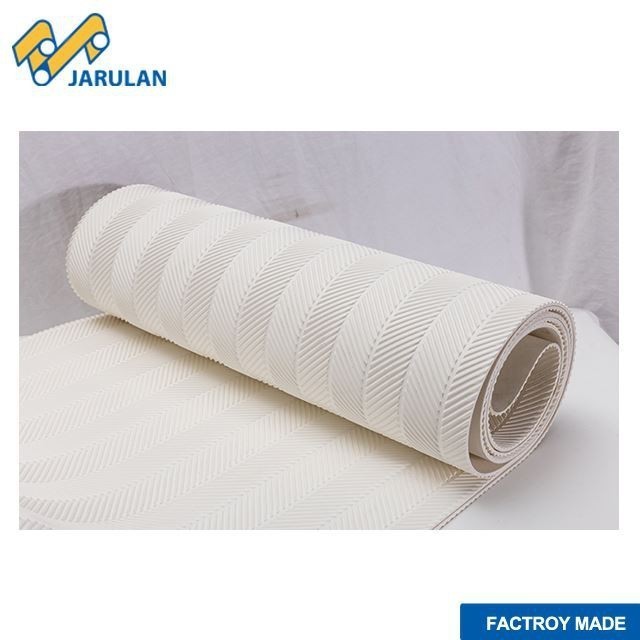

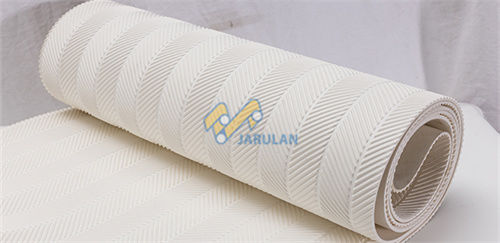

Mostly, we also called this Herringbone pattern as fishbone pattern in PVC conveyor belt series. Because its appearance pattern is very similar to the fishbone.
The fishbone pattern pvc conveyor belt is one kind of PVC conveyor belts, which is also very common in some applications. It's mostly applied in food industry with food grade quality, but sometimes customers will use it in other working situations as well. For example, one of our customers uses it to transport ink sticks.
It could also customized to be different colors as well, like green, white, petrol green, dark green, blue, etc.
Belt Data | |
---|---|
Fabric layer(s) | 2 EM |
Topside | Flexible PVC White |
2 mm 0.079 inch | |
65 Shore hardness | |
Bottomside | 0 |
Thickness approx. | 5 mm 0.197 inch |
Weight approx. | 4 kg/m² 0.819 lb/ft² |
Standard width | 2000 mm 78.7 inch |
Maximum width | 3200 mm 126.0 inch |
Belt Characteristics | |
Force at 1% elongation | 8 N/mm 44.8 lbs/ins |
Laterally stable | |
Noise level | (not applicable if blank) |
Ambient temperature | -15 °C 5 °F |
80 176 | |
Max. temperature short | -15 °C 5 °F |
100 212 |
Food grade white sawtoothed pvc conveyor belt is available for FDA and EU certificate as well.
We offer high quality food grade conveyor belts.
Please feel free to inquire for more informaiton and more types of pvc conveyor belts.
If our food grade sawtoothed washboard pvc conveyor belt for food industry caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
