Basket Profile I Shape Pattern PVC Conveyor Belt 2.5mm 3.2mm 3.5mm Thickness

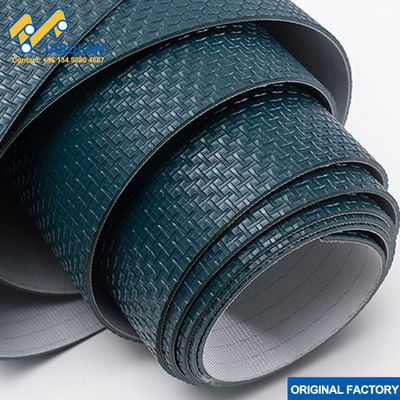

Large Image : Basket Profile I Shape Pattern PVC Conveyor Belt 2.5mm 3.2mm 3.5mm Thickness

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Packaging Details:	Wrapped with stretched film & Packed in pallets
Delivery Time:	within 15-20 days
Payment Terms:	T/T; LC,etc

Contact Now Chat Now

Basket Profile I Shape Pattern PVC Conveyor Belt 2.5mm 3.2mm 3.5mm Thickness

Description

Working Temperature:	-10/+80℃	Item:	PVC Conveyor Belt
Color:	Petrol Green	Thickness:	2.1mm/2.5mm/2.8mm
Top Pattern:	Basket Weave/I Shape	Bottom:	Polyester Fabric
Highlight:	2.5mm PVC Conveyor Belt , Basket Profile PVC Conveyor Belt , 3.5mm Thickness PVC Conveyor Belt

Basket I shape Pattern PVC Conveyor Belt

Description

Basket Profile I Shape Pattern PVC Conveyor Belt 2.5mm 3.2mm 3.5mm Thickness 0

Basket profile PVC belt is widely applied in general industry.

We could produce different thickness like 2.5mm, 3.2mm, 3.5mm, 4mm, etct to customers.

Normal polyester fabric, low noise fabric and other types of fabric could be matched with this type of belt as well.

Technical Data Sheet

Belt data
Color	Petrol Blue
Tension Member	Polyester Fabric
Fabric layer(s)	2	EM
Total Thickness	2.5	mm	0.098	inch
Weight approx.	2.6	kg/m²	0.532	lb/ft²
Standard width	2000	mm	78.7	inch
Maximum width	3000	mm	118.1	inch

Top side	PVC	H24	PetrolBlue
Thickness	0.9	mm	0.035	inch
Hardness	45A	Shore hardness
Middle side	PVC		PetrolBlue

Bottom side	Polyester Fabric
Thickness	0	mm		inch
Hardness		Shore hardness

Belt characteristics
Force at 1% elongation	8	N/mm	44.8	lbs/ins
Laterally	stable
Noise level		(not applicable if blank)
Ambient temperature	-10	°C	14	°F
	70		158
Max. temperature short	-15	°C	5	°F
	90		194

Jarulan has very good reputation for good quality products.

If our basket profile pvc belt with low noise fabric caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
