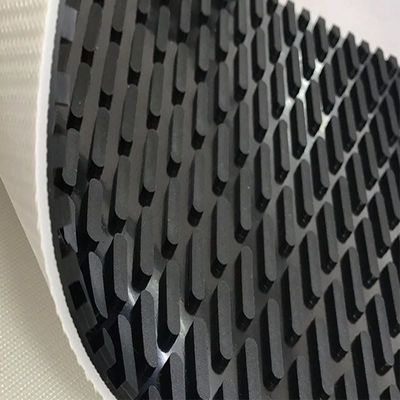

9.0mm PVC Checker Rhombus Conveyor Belt Custom Color For Wood Processing

9.0mm Checker Rhombus PVC Conveyor Belt for Wood Processing

Product structure

Structure: 2/3 fabric + 2/3 PVC

Color: blue/black/grey

Number of fabric layer: 2/3

Fibre type: Polyester, with lateral stability

Top layer material: PVC/PVC+RUBBER

Surface pattern: Ribbed /Big Square/Magic Square/Checker

Bottom layer material: Polyester fabric with conductive wire

Brand: Jarulan or as customized

Technical data

Total thickness(mm): 8.5mm/9.0 mm/10mm/11mm/12mm

Cover coating thickness(mm): according to your request

Weight(Kg/M2): 7.5 - 11

Maximum production width(mm): 2000

Tensile strength(N/mm):Tensile force for 1% elongation (N/mm): 14-60

Top layer hardness(Shore A): 85 - 93

Temperature article(℃): -20/+80

Minimum pulley diameter(mm): 120-350

Lateral stability: Yes
