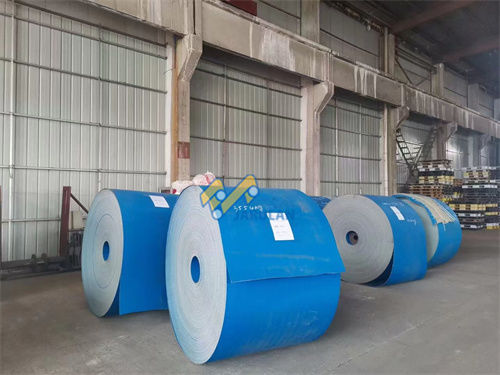

9.0mm Thickness 1 Ply PVC Solid Woven Conveyor Belt Two Side Flame Retardant

9.0mm Thickness 1 Ply PVC Solid Woven Conveyor Belt Two Side Flame Retardant
9.0mm Thickness 1 Ply PVC Solid Woven Conveyor Belt Two Side Flame Retardant 9.0mm Thickness 1 Ply PVC Solid Woven Conveyor Belt Two Side Flame Retardant

Large Image :  9.0mm Thickness 1 Ply PVC Solid Woven Conveyor Belt Two Side Flame Retardant

Product Details:
Place of Origin: China
Brand Name: JARULAN
Certification: flame retardant certificate
Model Number: 881466
Payment & Shipping Terms:
Minimum Order Quantity: 200 square meter
Price: decided by the quantity
Packaging Details: wrapped with stretched film & pallet
Delivery Time: 10-25 work days
Payment Terms: L/C,T/T
Contact Now Chat Now

9.0mm Thickness 1 Ply PVC Solid Woven Conveyor Belt Two Side Flame Retardant

Description
Temperature Range: -20 To 90 ℃ Material: PVC
Oil Resistance: Good Material Feature: Flame Retardant
Belt Width: 1200 Mm (Customized) Surface: Smooth
Surface Hardness: 80A Tensile Strength: 600N/mm
Product Thickness: 9mm Weight: 9.8 Kg/m²
Surface Coating Thickness: 1.5mm Minimum Positive Roll Diameter: 300mm
Minimum Reverse Roll Diameter: 300mm
Highlight:

1 Ply Solid Woven Conveyor Belt

,

9.0mm Solid Woven Conveyor Belt

,

9.0mm Thickness Solid Woven Conveyor Belt

9.0mm 1 Ply Doubles-side PVC Solid Woven Conveyor Belt with Flame-Retardant
Product Code: 881466
INFORMATION

PRODUCT: SOLID WOOVEN CONVEYOR BELT

Market Segment: Mining conveying, metallurgical lifting and conveying; grain lifting and conveying

Key Features: Oil-resistant, flame-retardant, impact-resistant, high strength with low elongation

Drive Support: Drum

9.0mm Thickness 1 Ply PVC Solid Woven Conveyor Belt Two Side Flame Retardant 0

9.0mm Thickness 1 Ply PVC Solid Woven Conveyor Belt Two Side Flame Retardant 1

PRODUCT DESCRIPTION
Product Core Layer:
  • Fabric Material: Polyester staple fiber
  • Weft Direction Property: Soft
  • Number of Fabric Layers: 1
Product Surface:
  • Surface Material: Flame-retardant PVC
  • Surface Property: Smooth
  • Surface Color: Black or blue
Product Bottom:
  • Bottom Material: Flame-retardant PVC
  • Bottom Property: Smooth
  • Bottom Color: Black or blue
PRODUCT FEATURES
  • Food Grade (FG): --
  • Anti-Static (AS): YES
  • High Conductivity (HC): --
  • Flame-Retardant (FR): YES
  • Explosion-Proof (AT): YES
  • Wear-Resistant (WR): --
  • Oil-Resistant (OR): YES
  • Aging-Resistant (AR): YES
TECHNICAL PARAMETERS
Parameter Standard Value Unit
Surface Hardness DIN 53505 80A shoreA
Tensile Strength GB/T 3690 600 N/mm
Force at 1% Elongation GB/T 3690 50 N/mm
Longitudinal Elongation at Break GB/T 3690 (ISO21181:2005) 20.0 %
Minimum Installation Elongation GB/T 3690 (ISO21181:2005) 0.5 %
Maximum Installation Elongation GB/T 3690 (ISO21181:2005) 1.0 %
Product Thickness -- 9.0 mm
Weight -- 9.8 kg/m²
Surface Coating Thickness -- 1.5 mm
Bottom Friction Coefficient -- 0.60 --
Temperature Resistance Range -- -20 to 90 ℃
Instantaneous Temperature Resistance -- -30 to 110 ℃
Minimum Positive Roll Diameter -- 300 mm
Minimum Reverse Roll Diameter -- 300 mm
Standard Production Width -- 1200 mm
Maximum Production Width -- 1200 mm
SPLICING TECHNICAL PARAMETERS
  • Splicing Method: Overlap or tooth splicing
  • Heating Panel Temperature: 185℃
  • Heating Base Temperature: 185℃
  • Pressure: 2.0 kg
  • Heat Preservation and Pressure Holding Time: 4 minutes



9.0mm Thickness 1 Ply PVC Solid Woven Conveyor Belt Two Side Flame Retardant 2
