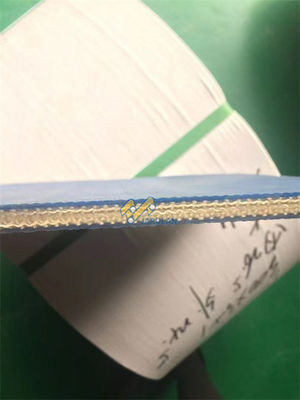

6.0mm 1 Ply Solid Woven Lifting Conveyor Belt Impact Resistant High Strength

6.0mm 1 Ply Solid Woven Lifting Conveyor Belt Impact Resistant High Strength
6.0mm 1 Ply Solid Woven Lifting Conveyor Belt Impact Resistant High Strength

Large Image :  6.0mm 1 Ply Solid Woven Lifting Conveyor Belt Impact Resistant High Strength

Product Details:
Place of Origin: China
Brand Name: JARULAN
Model Number: 881515
Payment & Shipping Terms:
Minimum Order Quantity: 200 square meter
Price: decided by the quantity
Packaging Details: wrapped with stretched film & pallet
Delivery Time: 10-25 work days
Payment Terms: L/C,T/T
Contact Now Chat Now

6.0mm 1 Ply Solid Woven Lifting Conveyor Belt Impact Resistant High Strength

Description
Temperature Range: -20 To 90 ℃ Material: PVC
Oil Resistance: Good Belt Width: 1200 Mm (Customized)
Surface: Diamond Surface Hardness: 75A
Tensile Strength: 600N/mm Product Thickness: 6.0mm
Weight: 6.8 Kg/m² Surface Coating Thickness: 1.0mm
Minimum Positive Roll Diameter: 200mm Minimum Reverse Roll Diameter: 200mm
Highlight:

Solid Woven Lifting Conveyor Belt

,

1 Ply Solid Woven Lifting Conveyor Belt

6.0mm 1 Ply solid woven lifting Conveyor Belt
Product Code: 881515
INFORMATION

PRODUCT: SOLID WOOVEN CONVEYOR BELT

Market Segment: Mining conveying, metallurgical lifting and conveying; grain lifting and conveying

Key Features: impact-resistant, high strength with low elongation

Drive Support: pulley

6.0mm 1 Ply Solid Woven Lifting Conveyor Belt Impact Resistant High Strength 0

6.0mm 1 Ply Solid Woven Lifting Conveyor Belt Impact Resistant High Strength 1

PRODUCT DESCRIPTION
Product Core Layer:
  • Fabric Material: Polyester Staple Fiber
  • Weft Direction Property: flexible
  • Number of Fabric Layers: 1
Product Surface:
  • Surface Material: PVC
  • Surface Property: Diamond
  • Surface Color: blue
Product Bottom:
  • Bottom Material:  PVC
  • Bottom Property: diamond
  • Bottom Color:  blue
PRODUCT FEATURES
  • Food Grade (FG): --
  • Anti-Static (AS): YES
  • High Conductivity (HC): --
  • Flame-Retardant (FR): --
  • Explosion-Proof (AT): --
  • Wear-Resistant (WR): --
  • Oil-Resistant (OR): --
  • Aging-Resistant (AR): --
TECHNICAL PARAMETERS
Parameter Standard Value Unit
Surface Hardness DIN 53505 75A shoreA
Tensile Strength GB/T 3690 600 N/mm
Force at 1% Elongation GB/T 3690 40 N/mm
Longitudinal Elongation at Break GB/T 3690 (ISO21181:2005) 20.0 %
Minimum Installation Elongation GB/T 3690 (ISO21181:2005) 0.5 %
Maximum Installation Elongation GB/T 3690 (ISO21181:2005) 1.0 %
Product Thickness -- 6.0 mm
Weight -- 6.8 kg/m²
Surface Coating Thickness -- 1.0 mm
Bottom Friction Coefficient -- 0.60 --
Temperature Resistance Range -- -20 to 90 ℃
Instantaneous Temperature Resistance -- -30 to 110 ℃
Minimum Positive Roll Diameter -- 200 mm
Minimum Reverse Roll Diameter -- 200 mm
Standard Production Width -- 1200 mm
Maximum Production Width -- 1200 mm
SPLICING TECHNICAL PARAMETERS
  • Splicing Method: Overlap or tooth splicing
  • Heating Panel Temperature: 178℃
  • Heating Base Temperature: 178℃
  • Pressure: 2.0 kg
  • Heat Preservation and Pressure Holding Time: 3 minutes



6.0mm 1 Ply Solid Woven Lifting Conveyor Belt Impact Resistant High Strength 2
