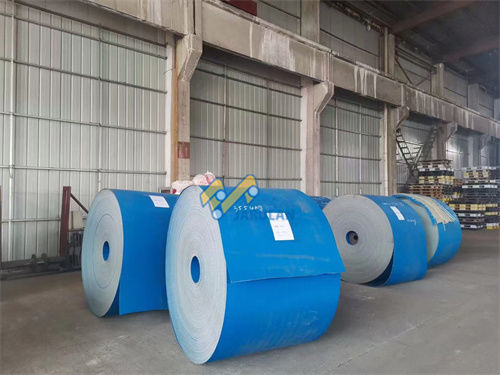

Double Side PVC Solid Woven Conveyor Belt 5.2mm Thickness 1 Ply

Double Side PVC Solid Woven Conveyor Belt 5.2mm Thickness 1 Ply
Double Side PVC Solid Woven Conveyor Belt 5.2mm Thickness 1 Ply

Large Image :  Double Side PVC Solid Woven Conveyor Belt 5.2mm Thickness 1 Ply

Product Details:
Place of Origin: China
Brand Name: JARULAN
Model Number: 882075
Payment & Shipping Terms:
Minimum Order Quantity: 200 square meter
Price: decided by the quantity
Packaging Details: wrapped with stretched film & pallet
Delivery Time: 10-25 work days
Payment Terms: L/C,T/T
Contact Now Chat Now

Double Side PVC Solid Woven Conveyor Belt 5.2mm Thickness 1 Ply

Description
Temperature Range: -20 To 80 ℃ Material: PVC
Oil Resistance: Good Belt Width: 2000mm-3000mm (Customized)
Surface: Smooth Surface Hardness: 55A
Tensile Strength: 100N/mm Product Thickness: 5.2mm
Weight: 6.5 Kg/m² Surface Coating Thickness: 2.3mm
Minimum Positive Roll Diameter: 100mm Minimum Reverse Roll Diameter: 100mm
Highlight:

Solid Woven Conveyor Belt 5.2mm Thickness

,

1 Ply Solid Woven Conveyor Belt

,

5.2mm Thickness Solid Woven Conveyor Belt

5.2mm 1 Ply Doubles-side PVC Solid Woven Conveyor Belt
Product Code: 882075
INFORMATION

PRODUCT: SOLID WOOVEN CONVEYOR BELT (Synthetic Resin Conveyor Belt )

Market Segment: indutrial conveying

Key Features: impact-resistant

Drive Support: pulley

Double Side PVC Solid Woven Conveyor Belt 5.2mm Thickness 1 Ply 0

Double Side PVC Solid Woven Conveyor Belt 5.2mm Thickness 1 Ply 1

PRODUCT DESCRIPTION
Product Core Layer:
  • Fabric Material: Polyester fabric
  • Weft Direction Property: stable
  • Number of Fabric Layers: 1
Product Surface:
  • Surface Material: PVC
  • Surface Property: Smooth
  • Surface Color: blue
Product Bottom:
  • Bottom Material: PVC
  • Bottom Property: fabric imbossed pattern
  • Bottom Color: blue
PRODUCT FEATURES
  • Food Grade (FG): --
  • Anti-Static (AS): --
  • High Conductivity (HC): --
  • Flame-Retardant (FR): --
  • Explosion-Proof (AT): --
  • Wear-Resistant (WR): --
  • Oil-Resistant (OR): --
TECHNICAL PARAMETERS
Parameter Standard Value Unit
Surface Hardness DIN 53505 55A shoreA
Tensile Strength GB/T 3690 100 N/mm
Force at 1% Elongation GB/T 3690 5 N/mm
Product Thickness --

5.2

 mm
Weight -- 6.5 kg/m²
Surface Coating Thickness -- 2.3 mm
Bottom Friction Coefficient -- 0.45 --
Temperature Resistance Range -- -20 to 80 ℃
Instantaneous Temperature Resistance -- -30 to 90 ℃
Minimum Positive Roll Diameter -- 100 mm
Minimum Reverse Roll Diameter -- 100 mm
Standard Production Width -- 2000 mm
Maximum Production Width -- 3000 mm
SPLICING TECHNICAL PARAMETERS
  • Splicing Method: Overlap or tooth splicing
  • Heating Panel Temperature: 165℃
  • Heating Base Temperature: 165℃
  • Pressure: 1.5 kg
  • Heat Preservation and Pressure Holding Time: 3 minutes



Double Side PVC Solid Woven Conveyor Belt 5.2mm Thickness 1 Ply 2
