Lattice PU Conveyor Belt 3.0mm

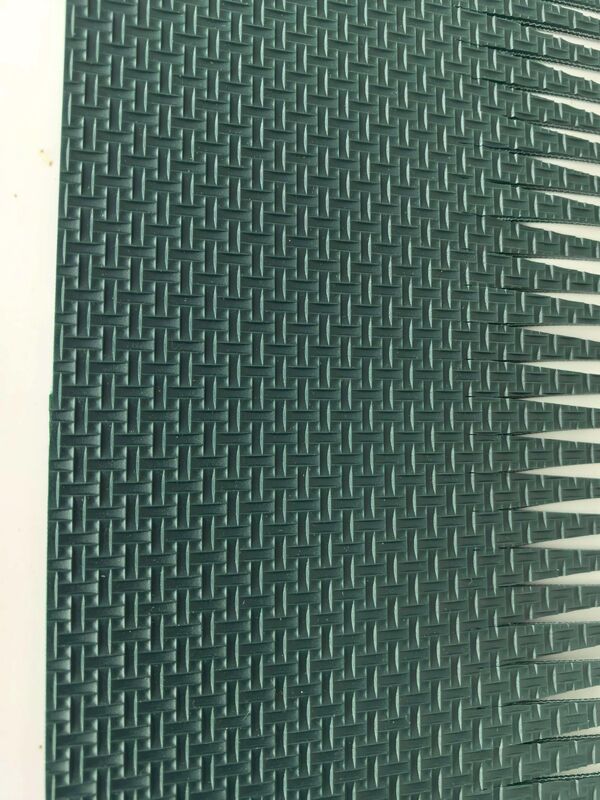

Large Image : Lattice PU Conveyor Belt 3.0mm

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Packaging Details:	Wrapped with stretched film & Packed in pallets
Delivery Time:	within 15-20 days
Payment Terms:	T/T; LC,etc

Contact Now Chat Now

Lattice PU Conveyor Belt 3.0mm

Description

Working Temperature:	-20/+90℃	Item:	PU Conveyor Belt
Color:	Petrol Green/green	Thickness:	2.1mm/2.5mm/2.8mm/3mm/3.5mm
Top Pattern:	Lattice	Bottom:	Polyester Fabric

Lattice PU Conveyor Belt

Description

Lattice PU Conveyor Belt 3.0mm

Lattice PU Conveyor Belt is widely applied in steel sheet industry and recycle industry.

We could produce different thickness like 2.5mm, 3.2mm, 3.5mm, 4mm, etct to customers.

Normal polyester fabric, low noise fabric and other types of fabric could be matched with this type of belt as well.

Technical Data Sheet

Belt data
Color	Petrol Blue/green/black
Tension Member	Polyester Fabric
Fabric layer(s)	2	EM
Total Thickness	2.5	mm	0.098	inch
Weight approx.	2.6	kg/m²	0.532	lb/ft²
Standard width	2000	mm	78.7	inch
Maximum width	3000	mm	118.1	inch

Top side	PU	lattice pattern	green
Thickness	0.9	mm	0.035	inch
Hardness	90A	Shore hardness
Middle side	PU		GREEN

Bottom side	Polyester Fabric
Thickness	0	mm		inch
Hardness		Shore hardness

Belt characteristics
Force at 1% elongation	8	N/mm	44.8	lbs/ins
Laterally	stable
Noise level		(not applicable if blank)
Ambient temperature	-20	°C
	90
Max. temperature short	-25	°C
	110

Jarulan has very good reputation for good quality products.

If our Lattice PU Conveyor Belt caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
