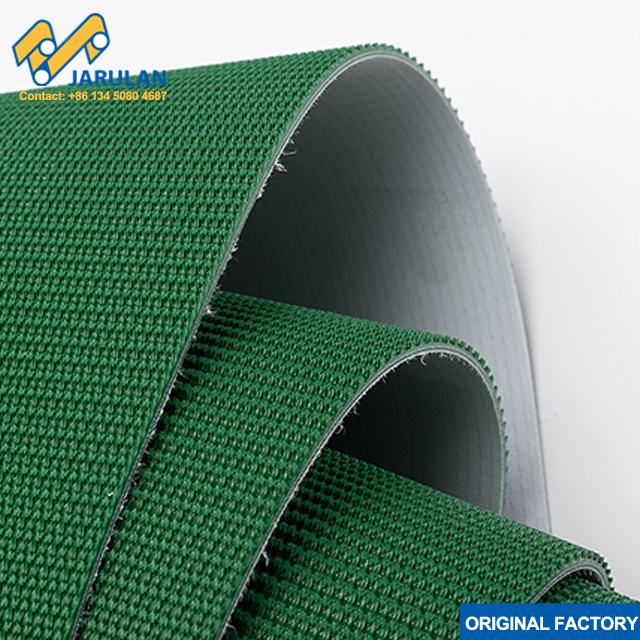

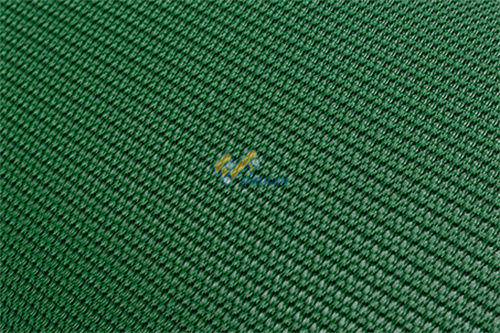

Very Good Anti-slip Performance Rough Pattern PVC Conveyor Belt

I'm Online Chat Now

Very Good Anti-slip Performance Rough Pattern PVC Conveyor Belt

Very Good Anti-slip Performance Rough Pattern PVC Conveyor Belt
Very Good Anti-slip Performance Rough Pattern PVC Conveyor Belt Very Good Anti-slip Performance Rough Pattern PVC Conveyor Belt Very Good Anti-slip Performance Rough Pattern PVC Conveyor Belt

Large Image :  Very Good Anti-slip Performance Rough Pattern PVC Conveyor Belt

Product Details:
Place of Origin: China
Brand Name: Jarulan
Model Number: PVC5/5RF2PB AS
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Packaging Details: Wrapped with stretched film & Packed in pallets
Delivery Time: within 15-20 days
Payment Terms: T/T; LC,etc
Contact Now Chat Now

Very Good Anti-slip Performance Rough Pattern PVC Conveyor Belt

Description
Working Temperature: -10/+80℃ Character: Anti-slip, Inclined
Belt Type: PVC Conveyor Belt Advantage: Flame Resistance/ Low Noise / Anti-slip
Usage: Logistics Industry; Airport Baggage Conveying Abrasion Resistance: High
Pattern: Rough; Super Grip Ply: 2
Color: Green; Petrol Blue; Grey; White; Etc.
Highlight:

rough pattern pvc conveyor belt

,

rough pattern green conveyor belt

Description

Very Good Anti-slip Performance Rough Pattern PVC Conveyor Belt

For AIR PORT AND LOGISTICS INDUSTRY

Flame resistance,wear resistance,anti static are the characteristics of airport and postal logistics industrial belts.We are specialized in turning conveyor belt,swing belt,baggage carrying belt,timing belt etc. They're widely used in inspection and sorting system for airport,parcel,logistic,supermarket and warehouse distribution.

PRODUCT ADVANTAGES:

  • With a variety of specifications; manufacturing or processing according to the specific application of environmental production is available.
  • Stable quality of dimensions; can be applied to changing temperature environment.
  • Low noise characteristics improve the transport environment.

TECHNICAL DATA OF RECOMMENDATION:

The following recommendation is just for standard reference.As conveying and processing systems are diverse and complex, we can customize solutions according to our customers' exact application situations.

CodeThicknessMaterialSurfaceBottomColorPlies1% Extension stress
(N/mm)
Weight
(kg/㎡)
Min. roller diameter
(mm)
Temperature range
(℃)
Standard Production width
(mm)
Special properties
PVC4/8RF2BK-FR4.8PVCroughfabricblack2125.4100-10~+802000/3000Flame resistance/ Low noise
PVC4/8RF2DG4.8PVCroughfabricdeep green2125.4100-10~+802000/3000
PVC5/2RF2G5.2PVCroughfabricgreen284.340-15~+802000/3000
PVC5/2RF2BK5.2PVCroughfabricblack284.650-10~+802000/3000Flame resistance/ Low noise
PVC5/2RF2DG5.2PVCroughfabricdeep green284.650-10~+802000/3000
PVC5/5RF2LB AS5.5PVCroughfabriclight blue284.860-10~+802000/3000
PVC5/5RF2PB AS5.5PVCroughfabricpetrol blue284.860-10~+802000/3000
PVC5/5RF2PG AS5.5PVCroughfabricpetrol green284.860-10~+802000/3000
PVC5/5RF2LB AS5.0PVCroughfabricpetrol blue284.555-10~+802000/3000

We can manufacture max. width of 3500mm.

PRODUCT DETAIL:

Other related products for logistics and airport application:

CodeThicknessMaterialSurfaceBottomColorPlies1% Extension stress
(N/mm)
Weight
(kg/㎡)
Min. roller diameter
(mm)
Temperature range
(℃)
Standard Production width
(mm)
Special properties
PVC2/5MF2BK2.50PVCmattfabricblack2103.050-10~+802000/3000
PVC2/8LF2BK-FR2.80PVClongitudinal groovefabricblack2103.260-10~+802000/3000Flame resistance/ Low noise
PVC5SF3G5.00PVCsmoothfabricgreen3135.4100-10~+802000/3000
PVC5SF3BK5.00PVCsmoothfabricblack3135.4100-10~+802000/3000
PVC5SF3W5.00PVCsmoothfabricwhite3135.4100-10~+802000/3000
PVK1203.00PVK

black2143.360-10~+802000/3000
PVK1254.00PVK

black2254.2100-10~+802000/3000
PVK1504.80PVK

black2255.0120-10~+802000/3000

As an experienced manufacturer of PVC and PU conveyor belt, JARULAN is able to produce the conveyor belts according to customers' requirement with high quality output.

Thickness, pattern, fabric layers, fabric type, materials of  the conveyor belts are available to customize. We could make exactly the same as your provided technical data sheet as well.
