Product Details:
Contact Now
Chat Now
|
Type: | PU Conveyor Belt | Material: | Polyurethane |
---|---|---|---|
Pattern: | Glossy Or Matt, Special Patterns Are Vailable | Quality: | FDA/EU Approved |
Thickness: | 0.5mm-6mm | Temperature Range: | -35℃ To 90℃ |
Color: | White/blue/black, Etc | Standard Width: | 2000mm/3000mm |
Application: | Food Conveying | ||
Highlight: | smooth top pu conveyor belt,smooth top polyurethane conveyor belt,food industry pu conveyor belt |
The knife edge PU conveyor belt finally passes over a very small-diameter pulley (the "knife-edge" pulley), which forces it to bend backwards sharply.
It is particularly widely used in industries like food, pharmaceuticals, and electronics assembly.
Its thin thickness and flexibility make the smooth transfer from one conveyor to another conveyor. Normally the pulley diameter for the knife edge PU belt to run on will be less than 10mm.

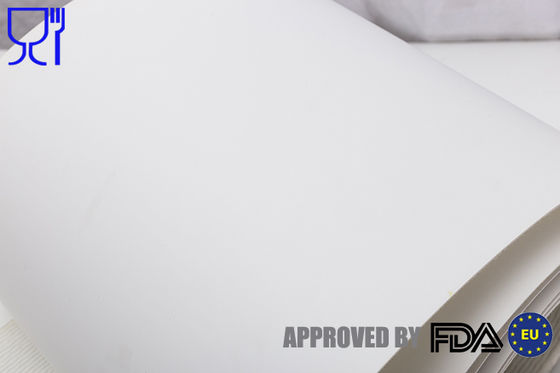

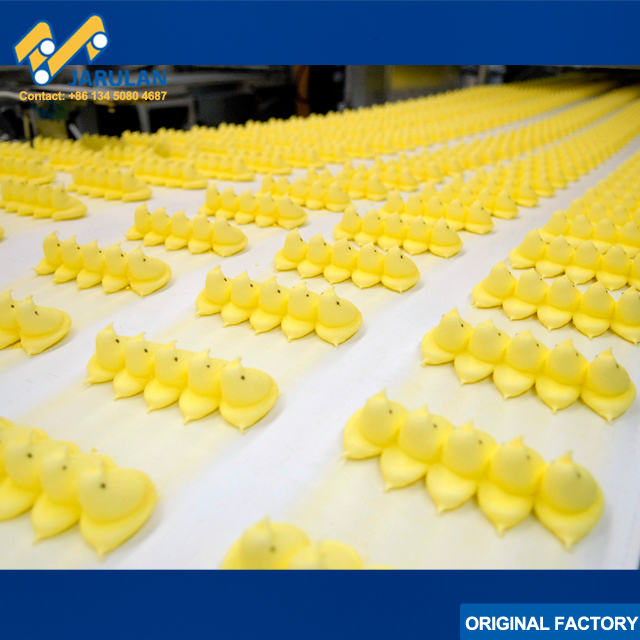

JARULAN food industrial conveyor belt is manufactured with international food grade standard. Approved by FDA and EU certificate, it has great performance in terms of oil resistance, wear resistance and cutting resistance. Now it is widely used in biscuit, candy, vegetables processing, meat processing, puffed food and other food industries.
Thickness (mm) |
Material | Surface | Bottom | Color | Plies | Force at 1% Elongation (N/mm) |
Weight (kg/㎡) |
Min. roller diameter (mm) |
Temperature range (℃) |
Standard Production width (mm) |
---|---|---|---|---|---|---|---|---|---|---|
0.80 | PU | smooth | fabric | white | 1 | 4 | 0.9 | 6 | -20~+90 | 2000/3000 |
0.80 | PU | matt | fabric | white | 1 | 4 | 0.9 | 6 | -20~+90 | 2000/3000 |
0.80 | PU | smooth | fabric | sky blue | 1 | 4 | 0.9 | 6 | -20~+90 | 2000/3000 |
0.80 | PU | matt | fabric | sky blue | 1 | 4 | 0.9 | 6 | -20~+90 | 2000/3000 |
0.80 | PU | matt | fabric | dark green | 1 | 4 | 0.9 | 6 | -20~+90 | 2000/3000 |
0.80 | PU | smooth | fabric | dark green | 1 | 4 | 0.9 | 6 | -20~+90 | 2000/3000 |
1.10 | PU | round dot | fabric | white | 1 | 4 | 1.0 | 8 | -20~+90 | 2000/3000 |
1.10 | PU | round dot | fabric | sky blue | 1 | 4 | 1.0 | 8 | -20~+90 | 2000/3000 |
1.20 | PU | smooth | fabric | white | 1 | 4 | 1.4 | 8 | -20~+90 | 2000/3000 |
1.20 | PU | matt | fabric | white | 1 | 4 | 1.4 | 8 | -20~+90 | 2000/3000 |
1.20 | PU | smooth | fabric | sky blue | 1 | 4 | 1.4 | 8 | -20~+90 | 2000/3000 |
1.20 | PU | matt | fabric | sky blue | 1 | 4 | 1.4 | 8 | -20~+90 | 2000/3000 |
1.25 | PU | smooth | fabric | white | 2 | 6 | 1.4 | 10 | -20~+90 | 2000/3000 |
1.25 | PU | matt | fabric | white | 2 | 6 | 1.4 | 10 | -20~+90 | 2000/3000 |
1.25 | PU | smooth | fabric | sky blue | 2 | 6 | 1.4 | 10 | -20~+90 | 2000/3000 |
1.25 | PU | matt | fabric | sky blue | 2 | 6 | 1.4 | 10 | -20~+90 | 2000/3000 |
1.30 | PU | fabric | fabric | transparent | 2 | 6 | 1.4 | 10 | -10~+80 | 2000/3000 |
1.30 | PU | matt | fabric | white | 2 | 5 | 1.5 | 10 | -20~+90 | 2000/3000 |
Code | Thickness (mm) |
Material | Surface | Bottom | Color | Plies | Force at 1% Elongation (N/mm) |
Weight (kg/㎡) |
Min. roller diameter (mm) |
Temperature range (℃) |
Standard Production width (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|
PU1/5SF2W | 1.50 | PU | smooth | fabric | white | 2 | 6 | 1.8 | 20 | -20~+90 | 2000/3000 |
PU1/5MF2W | 1.50 | PU | matt | fabric | white | 2 | 6 | 1.8 | 20 | -20~+90 | 2000/3000 |
PU1/5SF2SB | 1.50 | PU | smooth | fabric | sky blue | 2 | 6 | 1.8 | 20 | -20~+90 | 2000/3000 |
PU1/5MF2SB | 1.50 | PU | matt | fabric | sky blue | 2 | 6 | 1.8 | 20 | -20~+90 | 2000/3000 |
PU1/5MF2DG | 1.50 | PU | matt | fabric | dark green | 2 | 6 | 1.8 | 20 | -20~+90 | 2000/3000 |
PU1/5SF2DG | 1.50 | PU | smooth | fabric | dark green | 2 | 6 | 1.8 | 20 | -20~+90 | 2000/3000 |
PU1/5FF2W | 1.50 | PU | fabric | fabric | white | 2 | 6 | 1.8 | 15 | -10~+80 | 2000/3000 |
PU1/8SF2W | 1.80 | PU | smooth | fabric | white | 2 | 6 | 2.1 | 30 | -20~+90 | 2000/3000 |
PU1/8MF2W | 1.80 | PU | matt | fabric | white | 2 | 6 | 2.1 | 30 | -20~+90 | 2000/3000 |
PU1/8SF2BE | 1.80 | PU | smooth | fabric | blue | 2 | 6 | 2.1 | 30 | -20~+90 | 2000/3000 |
PU1/8MF2BE | 1.80 | PU | matt | fabric | blue | 2 | 6 | 2.1 | 30 | -20~+90 | 2000/3000 |
PU2SF2W | 2.00 | PU | smooth | fabric | white | 2 | 12 | 2.1 | 30 | -20~+80 | 2000/3000 |
PU2MF2W | 2.00 | PU | matt | fabric | white | 2 | 10 | 2.1 | 25 | -20~+80 | 2000/3000 |
PU2SF2SB | 2.00 | PU | smooth | fabric | sky blue | 2 | 12 | 2.1 | 30 | -20~+80 | 2000/3000 |
PU2MF2SB | 2.00 | PU | matt | fabric | sky blue | 2 | 10 | 2.1 | 25 | -20~+80 | 2000/3000 |
PU3SF2W | 3.00 | PU | smooth | fabric | white | 2 | 15 | 3.8 | 60 | -20~+80 | 2000/3000 |
PU2MF2W | 3.00 | PU | matt | fabric | white | 2 | 15 | 3.8 | 50 | -20~+80 | 2000/3000 |
PU3SF2T | 3.00 | PU | smooth | fabric | transparent | 2 | 15 | 3.8 | 60 | -20 | 2000/3000 |
PU3SF2DG | 3.00 | PU | smooth | fabric | deep green | 2 | 15 | 3.6 | 100 | -20~+90 | 2000/3000 |
PU3SF3DG | 3.00 | PU | smooth | fabric | dark green | 3 | 15 | 3.6 | 100 | -20~+90 | 2000/3000 |
PU3SF2BK | 3.00 | PU | smooth | fabric | black | 2 | 15 | 3.8 | 60 | -20~+80 | 2000/3000 |
PU3/5MGF3DG | 3.50 | PU | mini grip | fabric | dark green | 3 | 15 | 3.6 | 100 | -20~+90 | 2000/3000 |
PU4SF2DG | 4.00 | PU | smooth | fabric | deep green | 2 | 10 | 4.5 | 100 | -20~+80 | 2000/3000 |
PU4SF2W | 4.00 | PU | smooth | fabric | white | 2 | 10 | 4.5 | 100 | -20~+80 | 2000/3000 |
PU4SF2BK | 4.00 | PU | smooth | fabric | black | 2 | 10 | 4.5 | 100 | -20~+80 | 2000/3000 |
PU1/8MDF2DG | 1.80 | PU | mini diamond | fabric | deep green | 2 | 8 | 1.8 | 60 | -20~+80 | 2000/3000 |
PU1/8MDF2W | 1.80 | PU | mini diamond | fabric | white | 2 | 8 | 1.8 | 60 | -20~+80 | 2000/3000 |
PU1/8MDF2BK | 1.80 | PU | mini diamond | fabric | black | 2 | 8 | 1.8 | 60 | -20~+80 | 2000/3000 |
F3FF2W | 3.00 | FELT | felt | fabric | white | 1 | 5 | 1.9 | 50 | -20~+90 | 2000 |
F3/3FF2W | 3.30 | FELT | felt | fabric | white | 2 | 10 | 2.7 | 50 | -20~+90 | 2000 |
