Smooth Conveyor PVC Belting Blue Color 1.0mm 2.0mm 3.0mm 4.0mm Thickness

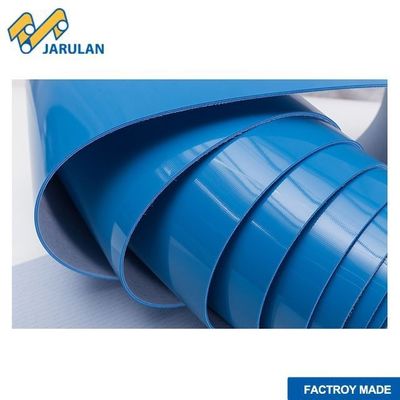

Large Image : Smooth Conveyor PVC Belting Blue Color 1.0mm 2.0mm 3.0mm 4.0mm Thickness

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Packaging Details:	Wrapped with stretched film & Packed in pallets
Delivery Time:	within 15-20 days
Payment Terms:	T/T; LC,etc

Contact Now Chat Now

Smooth Conveyor PVC Belting Blue Color 1.0mm 2.0mm 3.0mm 4.0mm Thickness

Description

Working Temperature:	-10/+80℃	Character:	Food Grade
Weight:	3.6 KG/㎡	Belt Type:	PVC Conveyor Belt
Item:	PVC Conveyor Belt	Usage:	Food Processing Industry
Advantages:	Non-toxic,Eco-friendly	Abrasion Resistance:	High
Color:	Blue	Thickness:	2mm/2.5mm/3mm/4mm/5mm
Bottom:	Antistatic Polyester Fabric	Top:	Smooth
Highlight:	3.0mm thick conveyor pvc belt , Blue Color Conveyor PVC Belting , 4.0mm pvc belting

Smooth Conveyor PVC Belting Blue Color 1.0mm 2.0mm 3.0mm 4.0mm Thickness

Description

Texture: PVC
Color: Blue
Thickness: 1.0/2.0mm/3.0mm/4.0mm
Feature: FDA/anti-static

Technical Data Sheet

Belt data
Color	light Blue
Tension Member	Polyester Fabric
Fabric layer(s)	2	EM
Total Thickness	2	mm	0.079	inch
Weight approx.	2.3	kg/m²	0.471	lb/ft²
Standard width	2000	mm	78.7	inch
Maximum width	3000	mm	118.1	inch
Top side
Type	OR PVC	05	lightblue
Thickness	0.5	mm	0.020	inch
Hardness	75A	Shore hardness
Middle side
Type	OR PVC		lightblue
Bottom side
Type	Polyester Fabric
Thickness	0	mm		inch
Hardness		Shore hardness
Belt characteristics
Force at 1% elongation	8	N/mm	44.8	lbs/ins
Laterally	stable
Noise level		(not applicable if blank)
Ambient temperature	-10	°C	14	°F
	80		176
Max. temperature short	-15	°C	5	°F
	100		212

If our smooth conveyor belt caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
